GigaLine 800
First-Class Speeds.
No Digging. No Waiting.
First-Class Speeds.
No Digging.
No Waiting.
Connect more cameras, sensors, Wi-Fi, and ITS applications over the infrastructure you already own.
Powering Intelligent Transportation Systems
Designed to complement fiber networks, the GL800 enables transportation agencies to extend connectivity to hard-to-reach locations, upgrade intersections to gigabit-class speeds, and rapidly connect more traffic cameras, sensors, Wi-Fi access points, and intelligent transportation applications.
With no digging, trenching, or rewiring required, agencies can complete projects in days instead of months while reducing deployment costs by up to 90% compared to new fiber construction. The result is a secure, cyber-hardened network with greater capacity, improved visibility, and the bandwidth needed to support next-generation traffic management and smart mobility initiatives.
Reach locations not served by fiber today
Instant
Connectivity
Gigabit over existing twisted pairs
Ultra-secure 256-bit triple shield encryption
I'd Like To Receive A Quote On the GL800
Just fill in your email address and hit submit! We will contact you with details.
Key Features
- Gigabit speeds over existing wiring
- High density & high quality of service Layer 2 switch
- Symmetrical & Asymmetrical transmission
- Up to 16 bonded pairs over G.Fast/VDSL
- Point-To-Point (PtP) and Point-To-Multipoint (PtMP)
- Ruggedized for indoor or outdoor installation
- Integrated with 3rd party CPEs & DSLAMs
- Intuitive management system with user-friendly GUI
Applications
Instantly deliver fiber-grade services for:
Multi-Tenant Units (MTUs)
Hotels & Motels
Senior Living Facilities
SIMPLE, FAST,
COST EFFECTIVE BACKHAUL
Enabling The Internet of Things
Security Cameras
License Plate Recognition
Utility Services Monitoring
Enabling Gigabit Connectivity campuswide
Phase 2 Fiber deployment is here.
Because it's time to finish the job.
The first wave of fiber deployment is now done, accommodating affordable and easy to reach locations. Now it’s time for the next wave to connect the harder to reach locations, where the 2nd generation of fiber-hybrid networks use both fiber and gigabit speed copper to provide fiber-grade connectivity quicker and much more economically.
The GL800 and our GL900 product lines are the perfect choice to close the digital divide immediately. We utilize your existing network infrastructure to save a tremendous amount of time and cost, and more importantly, get people connected immediately to the critical services they are lacking today.

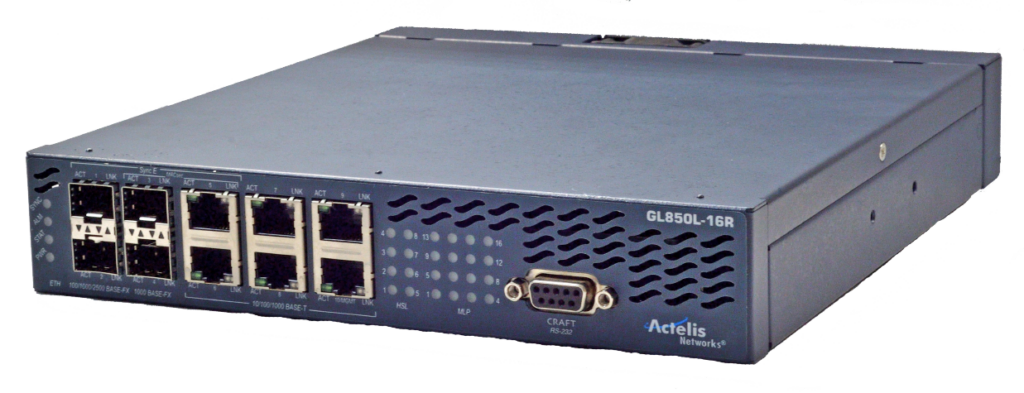

GL800
Gigabit Hybrid Fiber-Copper
Layer 2 Managed Switch
Instant Broadband For Multi-Dwelling Units
Gigabit connectivity for apartments, offices, hotels, and more, deployed in just hours!
Exponentially Increase Homes Passed, Instantly
When GigaLine 800 is installed in a neighborhood, fiber-grade service becomes instantly available
to all nearby homes, exponentially increasing your number of homes passed!
* Performance may vary based on required noise margin, noise environment within the binder, DSLAM / DPU / CPE used,
copper pairs quality and cable type. All distances are 24 AWG.
Fiber Extension To The Campus/Building
Taking advantage of your existing twisted pairs, GL800 bridges the last mile gap between the
fiber termination point and the out of fiber reach buildings, instantly enabling multi-gig speeds.

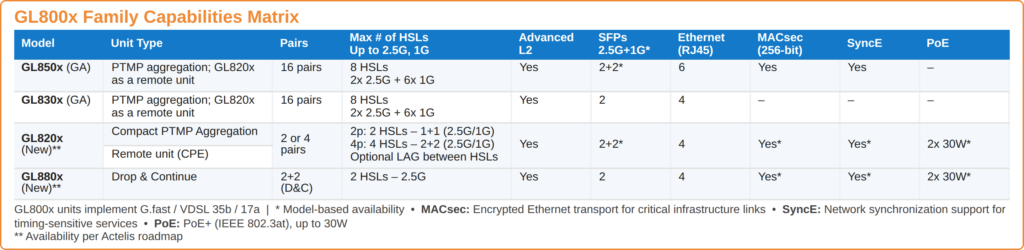

Summary of Specifications - GigaLine 800 Product Family
Ethernet (Network/User)
- 10/100/1000 Base-T: Connector: RJ45, Auto-MDIX. Please see the
product family table for port counts per model - 100/1000Base-FX, 1000/2500Base-FX: Connector: SFP based,
MSA compliant. Please see product family table for SFP counts per
model.
High Speed Link (Bonded Copper)
- Protocol: IEEE 802.3ah, ITU-T G.998.2 G.bond, G.993.5 Vectoring
- G.fast profile: ITU-T G.9700 / 01 Up to 212 MHz, fallback to VDSL2
- DMT Multimode: G.993.2 (VDSL2) – 35B/30A/17A
- Impulse Noise Protection: G.INP (ITU-T G.998.4)
- Bandwidth: Up to 2.5Gbps per HSL -for number of HSLs per
model, please see the product family table - Number of Copper Pairs: Up to 16
Synchronization (per model)
- Clock Source: Synchronous Ethernet, G.8261, G.8262 (6 ports)
- Clock Quality: EEC-option1 or 2
- Clock APS: Automatic Protection Switch per GR-1244-CORE
Management (Out-of-Band)
- RJ45 port
- Craft EIA RS-232 (DCE): DB9
- Bridging: IEEE 802.1q
- Forwarding Database size: 16K MAC addresses
- MTU: 1518 – 2048K Bytes (configurable per system)
- TPID: up to 4 settable per inner/outer tag
- Aging: Configurable
- MAC Limiting and Filtering
- Multicast/Broadcast Control
- Port based VLAN Stacking (Q-in-Q) Conditional VLAN Stacking
- VLANs: 4K, VLAN translations
- RSTP, STP: IEEE 802.1d
- Link Aggregation: IEEE 802.3, L2/L3 balancing
- Provider Bridges: IEEE 802.1ad
- LLDP: IEEE 802.1ab
- IGMP Snooping: RFC 4541, V1/V2 RFC 1112/2236
- ERPS: ITU-T G.8032
- EFM OAM: IEEE 802.3ah, Dying Gasp
- CFM/MEF OAM: IEEE 802.1ag , ITU Y.1731
- MACsec: IEEE 802.1ae (per model)
Quality of Service Features
- Classes of Service (que/port): 8
- Two Levels Hierarchical Scheduler (H-QOS), up to 64 que/port, WFQ, SP, Hybrid
- Bandwidth Control: 32 profiles, 2 rate, 3 color (CIR, CBS, EIR, EBS)
- EVCs: 32 Services
- Classification: 128 rules (Port/ VLAN/L2/L3/L4)
- Shaping: per queue/port
- Color Mode Awareness by COS or DEI
- CoS Marking: by COS or DEI, per Service
Applications
• EMS: MetaASSIST EMS
• Craft GUI: MetaASSIST View
Protocols
- IPV4 and IPV6
- DHCP Client: RFC 2132
- ACS Client, CWMP: TR-069
- Command Line Interface: TL1, CLI
- Remote Access: Telnet
- SNMP: V3, V2C, V1
- Radius Authentication: RFC 2865
- Secure Access (option): SSH v2
- Time Synchronization: SNTP v3
- Web Access: HTTP
- File transfer: FTP, TFTP
- Syslog: RFC 3164
- FIPS 140-3 (Model specific)
Indicators (LEDs)
- Power, Status, Alarm
- MLP per modem
- HSL per link
- Ethernet port : ACT, LNK
Alarm Contacts
- Terminal Block: 2 Input, 1 Output
Dimensions (HxDxW)
- 1.6 x 11 x 8.4 inch, 40 x 280 x 213 mm
Mounting
- Rack: 2 units in 19”, 23” or ETSI racks, Desktop, Wall Mount
- DC: 24/48 Vdc nominal
- AC: 90-264 VAC, 47-63 Hz, up to 45W (per model)
- PoE: 2 x PoE+ (IEEE 802.3at, up to 30W) (per model)
- Operating Temp: -40° to +65°C
- Storage Temp: -40° to +74°C
- Relative humidity: Up to 95%, non-cond.
- CE 2.0
- UL 60950, CSA C22.2 60950
- EN 60950-1, IEC 60950-1
- FCC Part 15 Class
- ICES-003 Class B
- ETSI EN 300 386 Class B
- ETSI ETS 300 132-2
- ITU-T K.20, K.21
- EMC and Safety
- GR-63-CORE
- ETSI ETS 300 019
- FIPS 140-3
