GigaLine 9000

Delivers instant Gigabit connectivity in large MDUs over existing coax infrastructure

PON Extender, G.hn wave2, Indoor Aggregation Unit
with Integrated G.hn/Wi-Fi End Point

Reach up to 160 MDU subscribers instantly with Gigabit services

Designed specifically to deliver connectivity in large multi-dwelling units (MDUs), the GigaLine 9000 solution is an ideal solution for instant distribution of 1 Gbps services reaching up to 160 MDU/NTU subscribers over existing coax infrastructure. Because the GL9000 utilizes the existing coax in the walls of the building, it is an extremely cost-effective, low entry cost solution allowing you to achieve an ultra-fast return on investment.

Low Entry Cost, Scalable To Meet Future Demands

The GigaLine 9000 features the GL910C Layer 2 switch with 10 G.hn coax ports and two 10Gbps SFP+ uplinks, providing ultimate scalability as you grow your customer base within apartments, hotels, and other MDUs. The solution has a very low initial cost because it allows you to start small (e.g. up to 16 users) and expand your capacity as needed by inserting coax SFPs, each serving an additional 16 users.

Integrated G.hn WiFi 6 Access Point

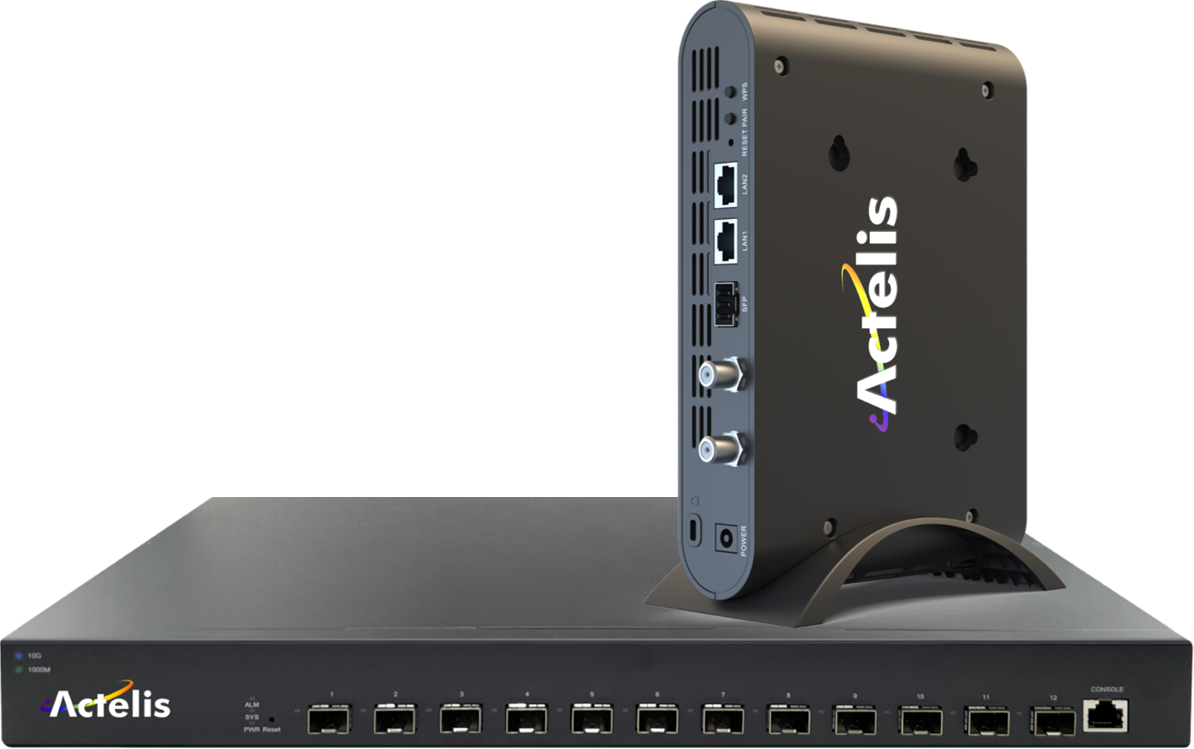

The GL910C pairs with our GL93C-W Wi-Fi customer end point, offering the seamless, integrated solution you need to tackle large scale MDU implementations. The GL93C-W is unique as it combines the G.hn CPE and a Wi-Fi 6 Access Point in a single unit.

10 Gig gpbs needle_black

10G
Uplinks

Ethernet Port Density

High
Density

Power saving

Ultra-Low Power Consumption

Ultra-Low
Power Consumption

Reuse icon_noun-reuse-1929746

Reuse the Existing Building Wiring

Reuse the Existing
Building Wiring

noun-security-2055625

Secure, Encrypted Solution

Secure, Encrypted
Solution

Key Features

  • No need to rewire the building
  • Serves up to 160 customers over existing coax
  • Scalable solution to meet future growth
  • Easy deployment / configuration
  • 10 x G.hn Coax ports with Actelis GL901SC (downlinks)
  • 2 x 10 Gbps SFP+ uplinks
  • Advanced L2 switching, non-blocking
  • Integrated customer end point with wireless and local interfaces
  • Combined G.hn CPE and Wi-Fi 6 Access Point in a single unit
  • Fully Managed, Web UI, SNMP
  • AES-128 Encryption
  • Advanced switching protocols: STP/RSTP/MSTP IEEE 802.1d/ 802.1w/IEEE 802.1s
  • Superior Reliability and Availability

Start Connecting In Large MDUs Today With GL9000

Product Name
High Level Description

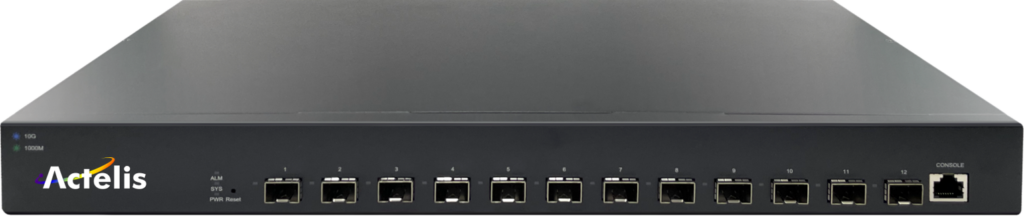

GL910C
Indoor Aggregation Unit
PON Extender G.hn Wave2 Aggregation Unit
Interfaces:
Uplinks: 2 x 10 Gbps ports for uplink, SFP+
Downlinks (Towards subscribers): 10 x 1/2.5 Gbps ports, to be used with GL901CS G.hn over coax SFPs
Dimensions: 441mm(W) x 131mm(D) x 44mm(H); 17.3″(W) x 5.15″(D) x 1.7″(H)
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Power Inputs: 90~264VAC 50~60Hz
Power Consumption: Less than 40 watts

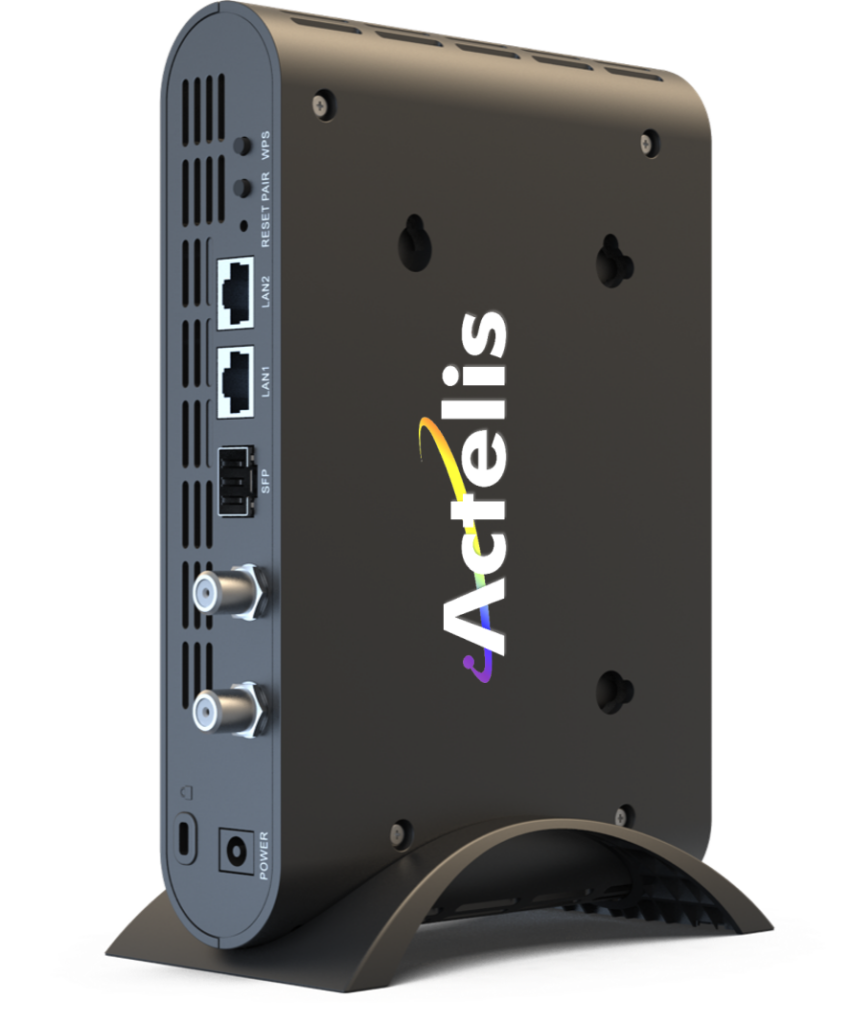

GL93C-W
Wi-Fi Customer unit /End Point
Integrated G.hn and Wi-Fi Customer unit /End Point
Interfaces:
Network Interface: G.hn over coax, Coax port, F-type connector
Local (LAN) Network Interfaces: 2x 10/100/1000BaseT Ethernet ports. (RJ45); 1 x 1 Gbps SFP port (optional)
Wireless Interfaces: WiFi6 IEEE 802.11a/b/g/n/ac/ax
Dimensions: 145mm(W) x 80mm(D) x 210mm(H); 5.7″(W) x 3.46″(D) x 8.27″(H)
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Power Inputs: 90~264VAC 50~60Hz
Power Consumption: Idle: 8.2W, Typ.: 11W, Max: 16.2W
Request A Quote

GL910C Aggregation Unit Specifications

GL910C Aggregation Unit Specifications

  • Network Uplink
    • 2 x 10 Gbps ports for uplink, SFP+
    • Active Ethernet OR GPON/EPON/XGS-PON via external ONU/ONT
  • Toward Subscribers (downlink)
    • 10 x 1/2.5 Gbps ports, to be used with GL901CS G.hn over coax SFPs
    • Each G.hn SFP port can support up to 1.7Gbps, 16 subscribers
  • Management Interfaces
    • Console port, RJ45, Baud rate 115200, 8/N/1
    • Reset Button – Factory default or restart
  • G.hn over Coax:
    • Via Actelis GL901CS SFP, Ports 1-10, Coax (F-type connector)
  • G.hn Wave-2:
    • ITU-T Standards: G.9960/1, G.9962 Management, G.9964 compliant
    • Up to 1.7 Gbps with Dynamic Time Allocation to optimize throughput
    • Frequency Band: Supports OFDM 200 MHz
  • Topologies supported: Point-to-MultiPoint – up to 16 subscribers per G.hn port (160 total subscribers)
  • Ease of Operation: Firmware downloads and configuration for end units
  • Security: Encryption AES-128
  • Spanning Tree Protocol: STP/RSTP/MSTP IEEE 802.1d/ 802.1w/IEEE 802.1s
  • MAC Table:
    • Up to 32K MAC addresses
  • Jumbo Frame: 10240 bytes
  • Link Aggregation Control Protocol (LACP): IEEE 802.3ad for any SFP+ (uplink) ports
  • VLANS:
    • Supports up to 4K VLANs simultaneously
    • VLAN supported: Port-based VLAN; IEEE 802.1Q tag-based VLAN; IEEE802.1ad (Q-in-Q) double tag; MAC-based VLAN; Management VLAN
  • IGMP: v2/v3 Snooping
  • DHCP:
    • DHCP for dynamic IP addresses, DHCP Snooping
    • DHCP Relay By supporting DHCP option 82
  • Quality of Service
    • Eight hardware queues per port
    • Scheduling Strict Priority and Weighted Round-Robin (WRR)
    • Queue assignment: Port based; 802.1p VLAN priority based; IPv4/IPv6precedence / Type of Service (ToS)
    • QoS Rate Limiting Ingress/Egress
  • Management: Telnet; SSH, HTTP/S, SNMP
  • Web GUI Interface: HTTP/ HTTPS – Easy-to-use dashboard for configuration, maintenance, and monitoring
  • Firmware Upgrade
    • Web browser upgrade HTTP or TFTP
    • Dual Firmware Image
  • IPv4 and IPv6: Support both
  • SNMP: SNMP V1/2c/3, Support for traps
  • Remote Monitoring (RMON): RMON groups 1,2,3,9 (history, statistics, alarms & events)
  • Port Mirroring: Mirroring per port, Multiple ports
  • Network Timing Protocol: Simple Network Time Protocol (SNTP)
  • Discovery Link Layer Discovery Protocol (LLDP): IEEE 802.1ab
  • ACL: ACL per MAC, VLAN, and IP based
  • Monitoring: CPU Usage, Memory Usage; Temperature & Voltage monitoring
  • Power LED
    • Off: power off or fail
    • On Green: power on
  • Status (System) LED
    • SYS: Green LED
    • Off: power off/fail
    • On Green: System is ready
    • Blinking: System booting up
  • Alarm LED
    • Off: No Faults
    • On Red: Alarm – system failure, overhead, wrong voltage
  • 1-10 Port LED: Link/ACT
    • Off: Port disconnected or link fail
    • On Blue: 2.5 Gbps
    • On Green: 1000 Mbps
    • Blinking: sending or receiving data
  • 11-12 Port LED: (SFP+) Link/ACT
    • Off: Port disconnected or link fail
    • On Blue: 10 Gbps
    • On Green: 1000 Mbps
    • Blinking: sending or receiving data
  • Reset Button
    • Push for six seconds to load the default setting
    • Status (SYS) LED will be blinking
  • CE Mark, FCC Part 15 Class A
  • UL compliant
  • Input: 90~264VAC 50~60Hz . Power consumption < 40W
  • Dimensions (inch/mm):
    • Height: 1.7” / 44 mm
    • Depth: 5.15” / 131 mm
    • Width: 17.3” / 441 mm
  • Fan: 1x fan
  • Temperature:
    • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
    • Storage Temperature: -40°C ~ 70℃ (-40°F ~ 158°F)
  • Relative humidity:
    • Operating: 10% ~ 90% RH (non-condensing)
    • Storage: 5% ~ 90% RH (non-condensing)
GL910C Data Sheet

GL93C-W Integrated G.hn and
Wi-Fi Customer Unit/End Point Specifications

GL93C-W Integrated G.hn and Wi-Fi Customer Unit/End Point Specifications

  • Network Interface (WAN)
    • G.hn over coax, Coax port, F-type connector
    • Compliant with the ITU-T G.hn G.9960 / G.9961 / G.9962 / G.9964
    • Up to 1.7Gbps, Frequency 2~200MHz, Range 500 meters
  • Local (LAN) Network Interfaces
    • 2x 10/100/1000BaseT Ethernet ports (RJ45)
    • 1 x 1 Gbps SFP port (optional)
  • Wireless Interfaces
    • WiFi6 IEEE 802.11a/b/g/n/ac/ax
    • 2.4GHz & 5GHz, Dual-band dual-concurrent (DBDC), Internal antennas
  • Other Interfaces
    • Coax Port, TV Out, F-type connector
  • Management Interfaces
    • Operating Modes: Router / Access Point / Bridge
  • G.hn Wave-2:
    • ITU-T Standards : G.9960, G.9961, G.9962 Management, G.9964 compliant
    • Up to 1.7 Gbps with Dynamic Time Allocation to optimize throughput
    • Frequency Band: Supports OFDM 200 MHz
  • Topologies supported
    • End point in a Point-to-MultiPoint topology, GL910C as headend
  • Security
    • Encryption AES-128
  • Wi-Fi Standards
    • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 4/5/6)
    • Supports Mesh Wi-Fi
  • Frequency Bands
    • 2.4 GHz: Up to 574 Mbps (20/40 MHz channels)
    • 5 GHz: Up to 1201 Mbps (40/80 MHz channels)
  • MIMO & Antenna Configuration
    • MIMO: 2×2 MU-MIMO
    • Antenna Type: 2 Internal
  • DFS Support
    • Yes – Zero-Wait DFS
  • Channel Bandwidth
    • 2.4 GHz: 20/40 MHz
    • 5 GHz: 40/80 MHz
  • SSID
    • Up to 4 SSIDs
  • Wireless Security
    • WPA/WPA2/WPA3-Personal
    • Wi-Fi Protected Setup (WPS)
  • VLANS
    • Optional VLAN per SSID and per Ethernet port
  • DHCP
    • DHCP Server
    • DHCP Client
  • Quality of Service
    • Supported
  •
  •
  • Remote Management
    • Full remote management through GL910C aggregator
  • Web GUI Interface
    • HTTP
  • Firmware Upgrade
    • Locally, through GL910C
  • IPv4 and IPv6
    • Dual Stack
  • Statistics
    • TX, RX bytes and packets on all ports
  • LAN and SFP LEDs
    • LAN1: On – Green
    • LAN2: On – Green
    • SFP: On – Green
  • Wireless LED
    • On Green, WLAN is ready
  • G.hn link LED
    • On – Color represents G.hn connection BW
      • Green: PHY rate > 300Mbps
      • Amber: PHY rate 100 ~ 300Mbps
      • Red: PHY rate < 100Mbps
  • Power
    • Green: Power on
  • POWER On/off button
    • Off: Power off or fail
  • Buttons (Front)
    • WPS: Press to begin Wi-Fi Protected Setup (WPS) procedure
    • RESET: Restore to default settings
    • PAIR: Not applicable (only for G.hn Home Networking)
  • Interfaces
    • LAN2: Ethernet 100/1000BaseT
    • LAN1: Ethernet 100/1000BaseT
    • SFP: 1 Gbps SFP port
    • COAX: G.hn based WAN port
    • TV: TV out signal to a TV
    • POWER IN: 12V DC power adapter
  • CE Mark, FCC Part 15 Class A
  • UL compliant
  • Input: On/off button
  • 90~264VAC 50~60Hz
  • Power consumption: Idle: 8.2W, Typ.: 11W, Max: 16.2W
  • Dimensions (L x W x H) w/stand:
    • 145 × 80 × 210 mm (5.7″ x 3.46″ x 8.27″)
    • Depth: 5.15” / 131 mm
    • Width: 17.3” / 441 mm
  • Installation
    • Desktop Unit
  • Fan: 1x fan
  • Temperature:
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature: -10°C ~ 60℃ (-14°F ~ 140°F)
  • Relative humidity:
    • Operating: 80% RH (non-condensing)
GL93C-W Data Sheet

Similar Product

GigaLine 900

Compact, ultra-low power, intelligent PON/Gigabit fiber extender/splitter
over copper or coax built to server small to medium sized MDUs.
